HYX-E50-H Explained: The 5.3kWh Entry Battery Module

If you've received a solar or battery quote in Australia recently and spotted the line item "HYX-E50-H" with little to no explanation next to it, you're not alone. Model-number codes like this are one of the most-searched, least-explained parts of any solar quote — and this guide exists to fix that.

What Is the HYX-E50-H?

The HYX-E50-H is a high-voltage lithium battery module manufactured by Zhejiang Hyxi Technology under its HYXI (formerly HYXiPOWER) brand. It's the entry point of the HYX-E-H series, a stackable, flat-panel battery system designed to scale from a single small module up to a much larger whole-home setup by adding more units to the same stack.

In plain terms: HYX-E50-H isn't a separate "budget" battery — it's one building block of a modular battery wall. The "50" in the name refers to its nominal energy tier, and the "H" identifies it as part of the high-voltage series (as opposed to HYXI's low-voltage or three-phase product lines). When you see it on a quote, it usually means the installer has speced a single-module entry configuration, or is using it as the base unit in a larger stacked design.

HYX-E50-H Specifications

Spec	Detail
Nominal battery energy	5.3 kWh
Usable energy	4.5 kWh
Cell chemistry	LiFePO4 (automotive-grade)
Nominal voltage	102.4V DC
Working voltage range	86.4–115.2V DC
Max charge/discharge current	35A
Cycle life	6,000+ cycles to 70% end-of-life capacity
Ingress protection	IP65, C4 salt-spray rated (outdoor-suitable)
Operating temperature	-10°C to 50°C (heating-module variant)
Dimensions (single module)	700 × 600 × 200mm
Weight (single module)	~65kg
Communication	CAN, RS485
Warranty	10 years or 6,000 cycles, whichever comes first (≥70% capacity retained)

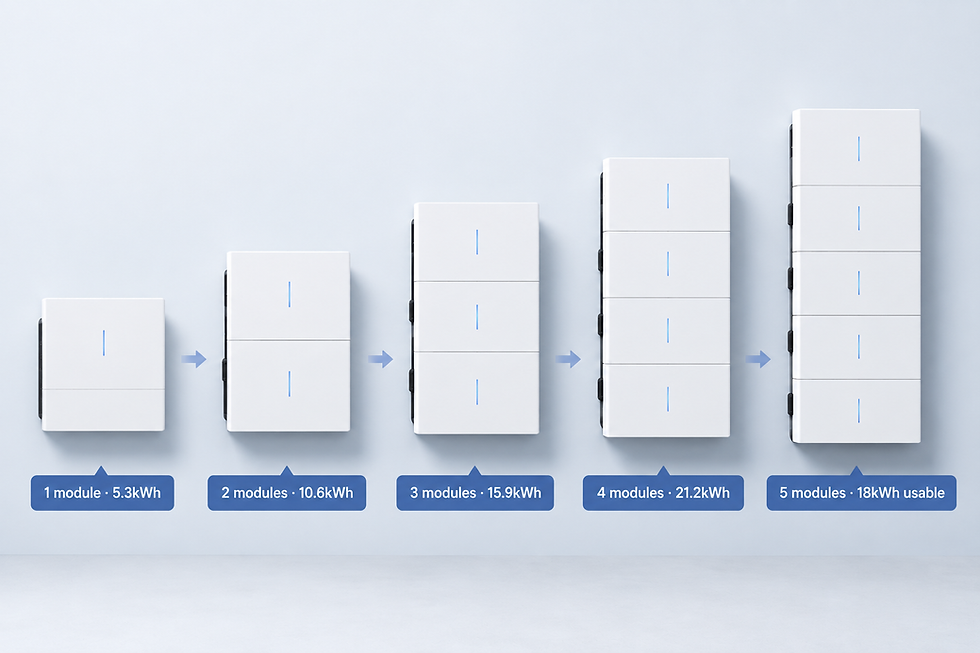

Because it's a stackable design, the HYX-E50-H doesn't work in isolation — it requires a compatible HYXI hybrid inverter, and its real-world output depends on how many modules are stacked alongside it. A single module supports a modest household load, while a full 5-module stack reaches roughly 18kWh of usable capacity, which is enough to cover most Australian household evening and overnight use. This is why the HYX-E50-H is frequently the "per-module" line item you'll see multiplied on a quote for a larger system, rather than the whole battery itself.

The HYX-E series (including the E50-H) was added to the Clean Energy Council's list of approved battery products for the Australian market in mid-2025 — a separate process from installer accreditation, which has been handled by Solar Accreditation Australia (SAA) since 2024. Product approval and installer accreditation are two different checks worth confirming independently when you're comparing quotes.

Why Solar Panels and Solar Energy Are Good in Australia

Seeing a specific battery model number on a quote is a sign you're already deep into comparing systems — so it's worth stepping back to why solar and battery storage make sense in Australia in the first place.

Australia's Sun Resource Is Genuinely Exceptional

Australia has some of the highest average solar irradiance of any inhabited continent, which means panels here typically generate more usable energy per installed kilowatt than in most of the world. That head start is a big part of why solar payback periods in Australia tend to be shorter than in cooler, cloudier markets.

Electricity Pricing Is Shifting in Favour of Self-Consumption

The Australian Energy Regulator's Default Market Offer for 2026–27 brought falling standing-offer prices to most of NSW and South East Queensland, alongside a modest rise in South Australia. But the more important shift for battery owners is structural, not headline pricing: network charges are still increasing in most regions, and the new Solar Sharer Offer gives eligible households a free daytime electricity window (around the middle of the day) rather than cheap electricity around the clock. That combination — free or cheap power during the day, and normal or peak pricing in the evening — is exactly the pattern a home battery is built to exploit, storing midday solar to offset the higher-cost evening hours instead of exporting it for a low feed-in tariff.

Grid Resilience and Energy Independence

With batteries like the HYX-E series supporting backup/UPS-style switching when paired with a compatible inverter, Australian households increasingly treat storage as insurance against grid outages as much as a bill-reduction tool — a meaningful consideration in regions prone to storms or bushfire-related outages.

Rebates Still Meaningfully Reduce Upfront Cost

Federal and state incentive programs continue to bring down the effective cost of both panels and batteries for eligible households, though the exact dollar value depends on your state, system size, and installation date.

Whichever specific battery module ends up on your system, the underlying case for going solar in Australia — abundant sun, rising network costs, and a electricity market increasingly rewarding self-consumption — remains one of the strongest of any country in the world.

Comparing Quotes? Here's Where to Go Next

HYXI is the manufacturer partner behind these battery modules, and learning more about HYXI is a good next step to understand their manufacturing background and quality standards. If you'd like to see how a HYX-E-series system — single module or full stack — would actually be sized and priced for your home, get a free quote from AU Solar Mate. And before comparing final numbers between installers, check AU Solar Mate's 2026 rebate guide to make sure every quote you're holding has the correct current incentives applied.
