HYX-H5K-HS Single-Phase Hybrid Inverter: Full Spec Walkthrough

If a solar installer has quoted you a system with a HYX-H5K-HS on the line item and you've gone looking for what it actually means, you're not alone. Model-number searches like this usually come from one place: someone with a quote in hand, trying to work out whether the hardware on it is any good before they sign. This guide breaks down exactly what the HYX-H5K-HS is, what it's built to do, and where it fits in an Australian solar and battery setup.

What Is the HYX-H5K-HS?

The HYX-H5K-HS is a 5kW single-phase hybrid solar inverter manufactured by Zhejiang Hyxi Technology Co., Ltd., the company behind the HYXI (formerly HYXiPOWER) brand. It sits in the middle of the HYX-H-HS single-phase family, which spans from a 3kW model up to an 8kW model — the "H5K" in the name is the manufacturer's shorthand for its 5kW nominal AC output rating, and "HS" denotes the single-phase, high-voltage-battery-compatible variant of the series.

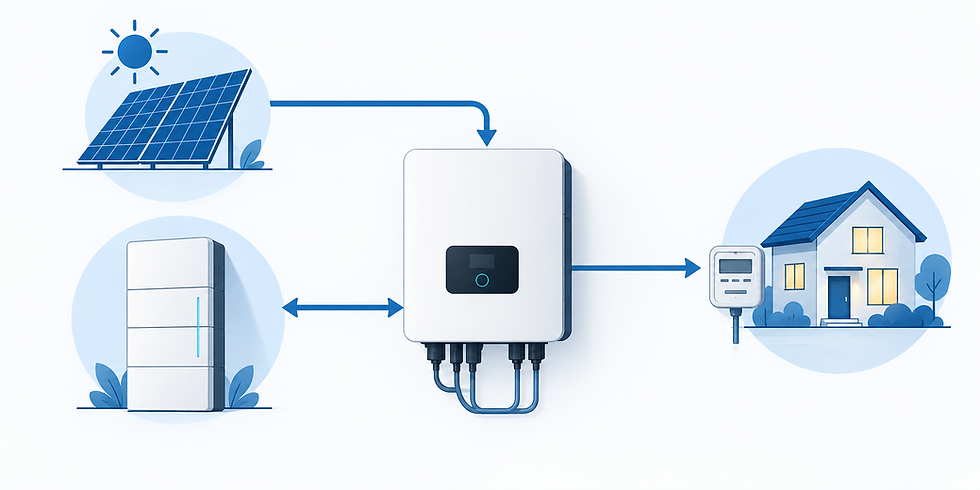

In practical terms, a hybrid inverter like this one does three jobs in a single box: it converts your solar panels' DC output into usable AC power, it manages charging and discharging of a connected battery, and it can automatically switch your home onto backup power during a grid outage. Rather than needing a separate solar inverter, battery inverter and backup transfer switch, the HYX-H5K-HS handles all of it.

HYX-H5K-HS Full Spec Sheet

Based on HYXI's current HYX-H3K/3K6/4K/4K6/5K/6K/8K-HS datasheet, here's what the HYX-H5K-HS is rated for:

Solar (PV) input

• Nominal AC output: 5,000W (5kW)

• Maximum PV array input: up to 10,000W, giving DC-to-AC oversizing headroom well above the inverter's own output — the manufacturer markets the series around roughly 160% recommended PV oversizing, with a higher technical ceiling available

• 2 MPP trackers, 1 string per tracker

• MPPT operating voltage range: 80–560V DC

• Maximum PV input voltage: 600V

Battery and backup

• Battery voltage range: 80–490V, with up to 35A fast charge/discharge current (per HYXI's marketing spec for this series)

• Automatic grid/off-grid switching in under 10ms — fast enough that most connected devices won't reset during a blackout transition

• 150% backup "turbo" surge output for 10 seconds, giving roughly 7,500W of short-burst backup power to start motor-driven appliances like fridges, pumps and air conditioners

Grid connection and build

• AC voltage range: approximately 154–276V, suited to Australia's single-phase 230V grid

• Adjustable power factor (0.8 leading to 0.8 lagging) and low total harmonic distortion, both relevant to meeting Australian grid-connection requirements

• Built-in AFCI (arc-fault detection) and rapid shutdown (RSD) support

• Type II DC/AC surge protection

• IP65 weatherproof rating with C4 salt-spray corrosion resistance, making it suitable for coastal Australian installs

• Roughly 30-minute quoted install time, generator and heat pump control ports, and app-based monitoring via mobile and PC

A note on specifications: the figures above come directly from HYXI's published datasheet for this inverter series. As with any manufacturer spec sheet, treat marketing language like "160% oversizing" or "turbo output" as the vendor's own framing rather than an independently verified benchmark — your installer should confirm the exact configuration and any AS/NZS 4777.2 grid-compliance settings that apply to your specific address and DNSP (distribution network service provider).

Why the HYX-H5K-HS Matters When You're Comparing Quotes

A 5kW single-phase hybrid inverter like the HYX-H5K-HS is a common fit for the "average" Australian rooftop solar system — CER data shows the average new residential solar install is now sized well within this bracket. If you've received a quote listing this model, it's worth checking a few things against the spec sheet above: whether your panel array falls within the inverter's PV input ceiling, whether the quoted battery is compatible with its 80–490V battery voltage range, and whether backup circuits have been sized sensibly against that 7,500W surge figure rather than the full home load. None of that is unusual or a red flag on its own — it's simply the kind of detail that's easy to skim past on a written quote but useful to understand before you commit.

Why Solar Panels and Battery Storage Make Sense in Australia

Australia's Solar Resource Keeps Driving Uptake

Australia has some of the best solar irradiance in the world, and the uptake numbers reflect it. As at 23 July 2026, the Clean Energy Regulator recorded 4.469 million rooftop solar systems installed nationally — around 41% of Australian homes. The rollout is still accelerating: the CER's June quarter 2026 report recorded 1 gigawatt of rooftop solar installed in a single quarter, a new quarterly record.

Batteries Are Catching Up Fast

Battery storage attached to those solar systems is growing even faster. More than 193,000 home batteries were installed in 2025 alone, delivering 4.6 gigawatt-hours of storage capacity, and the CER expects 2026 to bring a further 8–12 GWh from an estimated 350,000–520,000 residential battery installations — largely driven by demand ahead of and under the Cheaper Home Batteries Program.

Electricity Pricing Is Shifting in Solar's Favour

The Australian Energy Regulator's 2026–27 Default Market Offer, effective from 1 July 2026, reduced standing-offer electricity prices across most DMO regions and, for the first time, introduced the Solar Sharer Offer — a standing offer giving eligible households in NSW, South East Queensland and South Australia a free three-hour electricity window in the middle of the day (11am–2pm in NSW/SEQ, 12pm–3pm in SA). Combined with ordinary time-of-use tariffs, this kind of pricing structure makes a hybrid inverter and battery pairing — which can shift and store midday solar generation for evening use — more valuable than it was even a year or two ago.

Between the resource, the incentives and the shifting tariff landscape, hardware like the HYX-H5K-HS is being installed into a market that's moving quickly in solar's favour.

Where to Go From Here

The HYX-H5K-HS is manufactured by HYXI, AU Solar Mate's partnered inverter and battery brand — you can read more about their engineering background and product range on our HYXI partner page. If you've been quoted this inverter, or you're comparing it against other options for your home, our team can walk you through whether it's the right fit for your roof, your household load and your budget — get a free, no-obligation quote here. And because rebates and incentives shift the real cost of a system significantly, it's worth checking what you're eligible for before you compare final prices — our 2026 Rebate Guide breaks down the current federal and state schemes in plain English.
